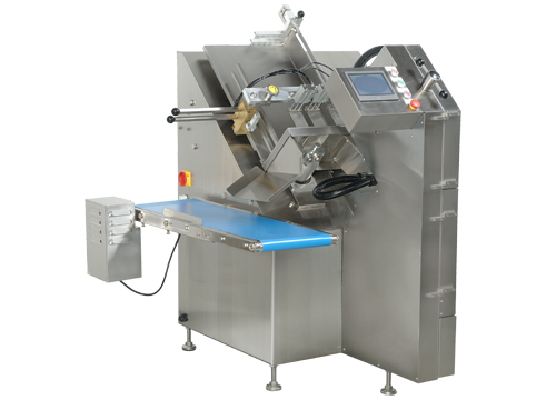

Full automatic saw machine HY-350A

The whole machine is made of stainless steel SUS304 material, strong and durable

Can be a long time to work to ensure that the meat of the tattoo, cutting surface smooth

The body uses 45 degrees design, waterproof design, can quickly clean

The trough adopts 45 degree design, which is helpful to the material stable transmission, the accurate cutting.

Saw belt tension device, easy adjustment and installation

Design of double wheel belt prevent saw belt off

High precision design, the main and auxiliary wheel drive vibration can be up to 0.01mm

The cutting effect is best, the waste is the least, and the use cost is lowest.

Processing temperature to minus 4 degrees Celsius to 30

Safety guard device

Touch screen smart operation panel, can be set 5 sets of memory function, can be set cutting speed

Thickness adjustment using servo motor, high precision setting thickness

Machine design conforms to CE standard

According to different purposes, frozen meat, with meat products, fish products according to set the thickness of cutting

Model

Outline dimension

The bin size

Cutting thickness

yield

Voltage

power

Saw Band Specification

Cutting speed

HY-350A

1250x1550x1630mm

633x322x224mm

5-50mm

20-29 times / min

380V three phase

4HP

2578mm

32m/S
