- Place of Origin: BEIJING
- Brand Name: xien
- Model Number: HY-420A

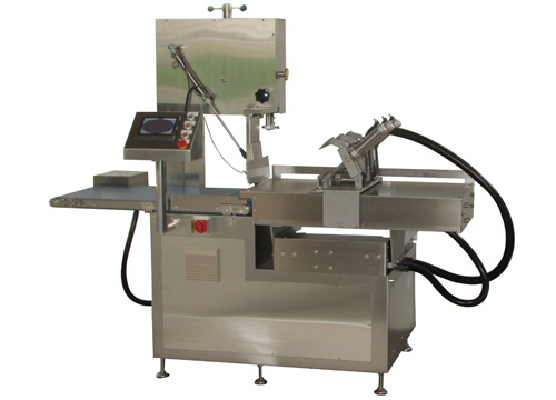

Full automatic saw machine HY-420A
The whole machine is made of stainless steel SUS304 material, strong and durable
Can be a long time to work to ensure that the meat of the tattoo, cutting surface smooth
Whole machine waterproof design, can quickly clean
The starting point at the top of the 45 degree design, the bottom end of the fixed pin, contribute to stable transmission, accurate material continuous cutting
Saw belt tension device, easy adjustment and installation
Design of double wheel belt prevent saw belt off
High precision design, the main and auxiliary wheel drive vibration can be up to 0.01mm
The cutting effect is best, the waste is the least, and the use cost is lowest.
Processing temperature to minus 4 degrees Celsius to 30
Safety guard device
Touch screen smart operation panel, can be set 5 sets of memory function, can be set cutting speed
Thickness adjustment using servo motor, high precision setting thickness
Machine design conforms to CE standard
According to different purposes, frozen meat, with meat products, fish products according to set the thickness of cutting
Model
Outline dimension
The bin size
Cutting thickness
yield
Voltage
power
Saw Band Specification
Cutting speed
HY-420A
1980x1480x1840mm
680x500x280mm
3-50mm
15-40 times / min
380V three phase
5HP
3150mm
37m/S
